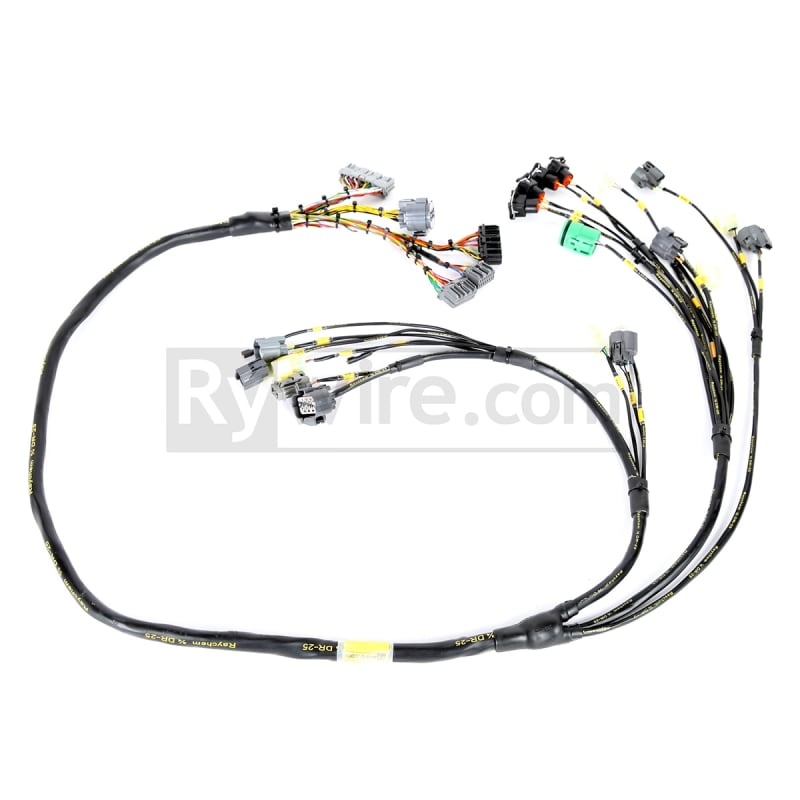

Our D-series & B-Series OBD1 Mil-spec wire harness is cross-compatible with both engine types.

This harness uses Mil-Spec Teflon coated wire with a maximum heat rating of 200°C .Standard wall ethylene-tetrafluoroehtylene (ETFE) insulation ( also known as Tefzel ) designed for aerospace applications where weight, dimensional tolerance, and mechanical durability are required. This wire exhibits high chemical and radiation resistance. The Teflon coated wire is loomed with The highest quality Raychem DR-25 heat shrink covering, and adhesive lined wire junctions to keep moisture out.
Each connector is crimped with pneumatic heads to ensure an OEM crimp every time, then tagged with a yellow identification labels for easy installation. All heavy interference circuits are protected and grounded with proper wire covering.

Rywire also offers a Firewall mounted Mil-Spec connector that will allow easy engine removal for quick engine changes and customization. It can be added to any Mil-Spec wire harness.

All connectors and materials are new. Each connector is crimped with pneumatic heads to ensure an OEM crimp every time, then tagged with a white identification label for easy installation. All heavy interference circuits are protected and grounded with proper wire covering. Our engine harnesses are 100% quality tested pin to pin; And resistance checked to ensure no voltage fluctuations.

All Rywire engine harnesses are made with OBD1 (92-95) Computer Connectors. A computer plug adapter can be used for OBD2 computers if necessary however our harness does not support USDM OBD2 computers. Aftermarket computers using OBD2 plugs and Non-US OBD2 computer's are compatible (except for H22 and GSR stock computers).

Each harness will come with a custom back side sub-harness that will be proprietary to the chassis you choose on the drop down menu. This way if you ever change chassis you will only need a new sub-harness, not a whole new wire loom!

These harnesses are warrantied and guaranteed to work, however they are non-refundable. Because the back-side (interior/shock tower connection) separates from the main harness, the engine harness can be used on multiple chassis provided the engine itself uses the same components. We sell the back-side harness separately only over the phone for previous engine harness customers.

Chassis adapter options

This harness can plug and play into any chassis, but we recommend our Rywire standalone RACE fuse box http://www.rywire.com/product-p/b-sub-race.htm

This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.

This harness with the RACE fuse/relay box can also be plug and play with our SWITCH PANEL
http://www.rywire.com/product-p/ry-switch-6.htm

The engine harness, fuse/relay box, and switch panel are all PLUG AND PLAY making your life much easier!

MADE IN THE U.S.A.

---

HARNESS CONNECTOR LIST:

• Oil Pressure Sending Unit	• Knock Sensor	• Intake Air Temperature (Intake Manifold Style)
• Oxygen Sensor (Primary 4 Wire)	• Alternator	• 2 Extra Wires
• Injector 1-4	• MAP Sensor	• TPS (Throttle position)
• Idle Control Motor	• Electronic Speed Sensor	• Ground
• Fan Switch	• OBD1 Distributor plugs	• h20 Sending Unit (for Gauge Cluster)
• Reverse Lights	• Engine Coolant Temp	• Starter Signal
• VTEC Solenoid	• OBD1 Computer Plugs A,B,D	• Power Distribution Cap

---

This instruction is for an 88-91 CRX/Civic installing a Budget Tucked or Mil-spec version of the B-series, D-series, F-series & H-series Rywire engine harness "Chassis Adapter". [ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
This instruction is for an 90-91 Integra DA installing a Budget Tucked or Mil-spec version of the B-series, D-series, F-series & H-series Rywire engine harness "CHASSIS ADAPTERS" specific to your vehicle type; But matching a wide range of our engine harnesses. [ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
This instruction is for an 92-95 Civic & 92-95 Integra installing a Budget Tucked or Mil-spec version of the B-series, D-series, F-series & H-series Rywire engine harness “CHASSIS ADAPTERS” specific to your vehicle type. [ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
This instruction is for an OBD2a vehicle installing a Budget Tucked or Mil-spec version of the B-series, D-series, F-series & H-series Rywire engine harness “CHASSIS ADAPTERS” specific to your vehicle type; But matching a wide range of our engine harnesses. Note: On OBD2a Civic’s our adapter is plug and play, this isn’t needed. [ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
This instruction is for an OBD2b vehicle installing a Budget Tucked or Mil-spec version of the B-series, D-series, F-series & H-series Rywire engine harness “CHASSIS ADAPTERS” specific to your vehicle type; But matching a wide range of our engine harnesses. [ RIGHT CLICK AND "SAVE AS" TO SAVE PDF FILE ]
