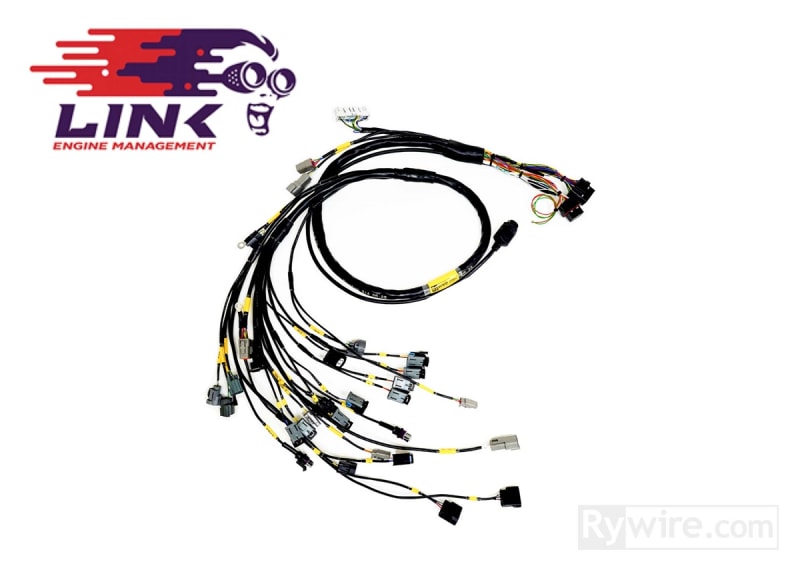

The Rywire B-Series Link G4 Elite engine harness is a universal, fully populated race loom that incorporates all the essential functionality of the fastest Front wheel drive Hondas of today!
If you are building a Front (or all) wheel drive race car and need the data and flexibility of the top computers on the market, then this is the harness for you. The Link G4 EMS offers some of the best functionality on the market today, and this harness packs a punch, allowing all the necessary terminations. We have worked with some of the fastest front wheel drive race cars in the world and got there feedback. The harness we are offering allows for plenty of expansion, and pre-terminated connectors exactly where you need them.
Pre-terminated for:
COMPUTER Plug Selections: Link G4
Programming Cable Ethernet, or UBS depending on computer choice
Lambda/ Uego Bosch 4.9 LSU Wideband O2 sensor, Lambda over CAN, (Depends on computer chosen)
AIR TEMP AEM (AEM Part 30-2014)
OIL TEMP AEM (AEM Part 30-2013)
Fuel Pressure AEM (AEM Part 30-2130-100)
Oil Pressure AEM (AEM Part 30-2130-150)
Exhaust Backpressure (EMAP) AEM (AEM Part 30-2130-50 or 30-2130-75)
Manifold Pressure (MAP) AEM (AEM Part 30-2130-50 or 30-2130-75)
Throttle Position (TPS) Factory Honda B series
Coolant Sensor (ECT) Factory Honda B series
VTEC Factory Honda (1992+)
Speed Sensor (VSS Hydro) Factory Honda B series
Reverse Lights Factory Honda (1992+)
Starter Trigger Factory Honda
Coils Factory Honda K-series (Smart Coils)
Ground Ring Terminals for Coils and Computer Factory Honda
Knock Sensor Bosch 0261231188 (2 wire EV1)
Alternator Factory Honda (OBD0/1 or OBD2 styles available) Default is OBD2
Injectors (8 Injector) Bosch EV14 Default (ID 1050X)
Boost Solenoid (MAC solenoid) Rywire (Rywire 3 port or 4 port kit) DTM 2 pin
FLEX FUEL capable Rywire (Rywire flex fuel kit ) If wired into AUX connector.
12 pin Engine Bay AUX expansion (Contains power, 5V, sen ground, CAN, and 6 AV/DIG inputs)
5 pin Cabin AUX expansion (Contains 5V, sen ground, and 3 AV/DIG inputs)
Trigger (CAM/CRANK) T1 Trigger sensor Default (easily expandable for AEM EPM, T1 trigger, and Rywire CAM/CRANK trigger
DBW (Drive-By-Wire) capable We can create AUX expansion to wire in the DBW T.B. and Pedal
CAN BUS connectivity Powered CAN (connects devices such as loggers, dashes, and gauges)
Our Link engine harness is designed to accept:
-T1 Race Development (cam trigger) Plugs directly into loom labeled “Trigger ”
Chassis adapter options
This harness can plug and play into any chassis, but we recommend our Rywire standalone RACE fuse box http://www.rywire.com/product-p/b-sub-race.htm
This fuse box allows for a quick and easy install into any chassis, off road car, sand rail, buggy, gutted circuit or drag race car.
This harness with the RACE fuse/relay box can also be plug and play with our SWITCH PANEL
http://www.rywire.com/product-p/ry-switch-6.htm
The engine harness, fuse/relay box, and switch panel are all PLUG AND PLAY making your life much easier!
MADE IN THE U.S.A.
